4. OV10 Scenting Unit: Installation and Refill Guide

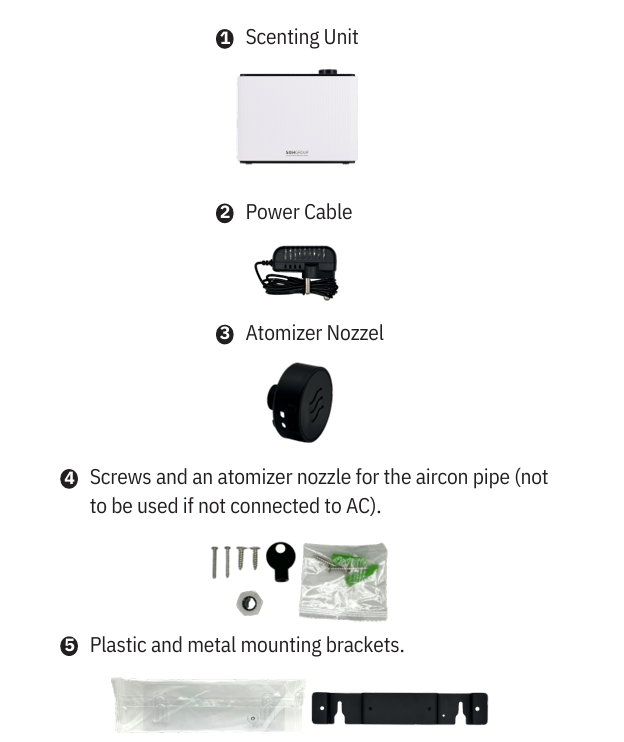

What's in the Box

Before starting, ensure you have all the components included with the system:

Step-by-Step Refill Instructions

Follow these ten steps to refill your scenting unit fragrance bottle:

•

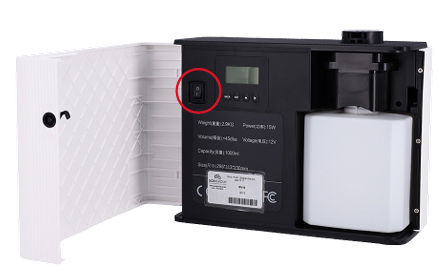

  Step 1: Make sure the scenting unit is completely switched off before proceeding.

•

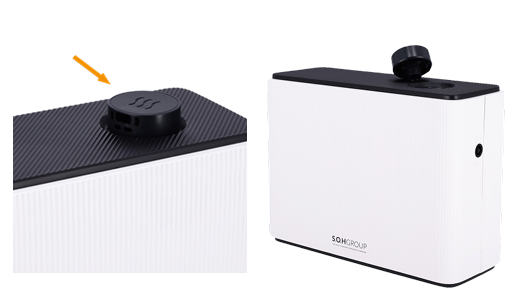

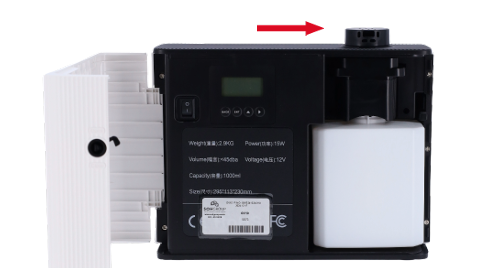

  Step 2: Locate the nozzle on the very top of the unit and remove it by unscrewing it.

•

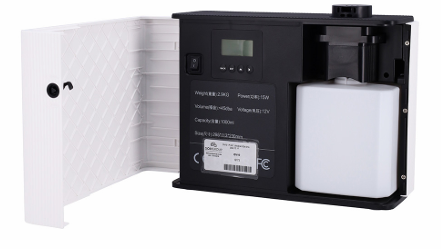

  Step 3: Use the key provided with the unit to unlock and open the front access door.

•

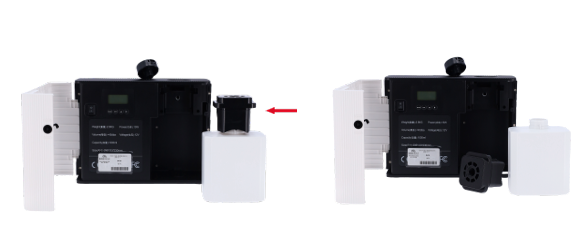

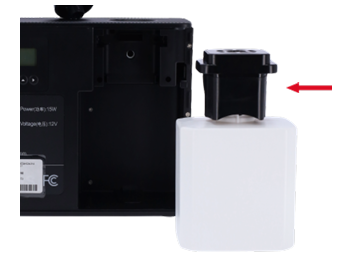

  Step 4: Carefully remove the fragrance bottle from the inside compartment and unscrew the attached black atomizer head from the bottle.

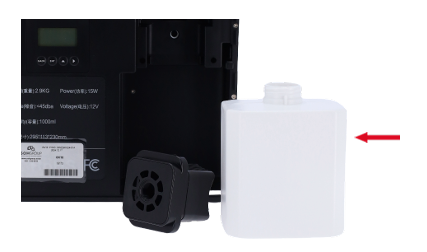

• Step 5: Pour your fragrance oil into the bottle until it reaches the MAX mark. Double-check to ensure there is no liquid spillage on the outside.

• Step 6: Screw the atomizer head back onto the top of the fragrance bottle, making sure it is closed tightly to prevent any leakages.

•

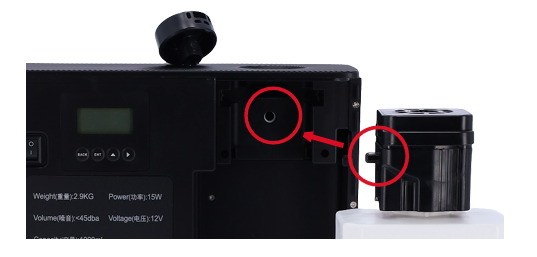

  Step 7: Position the bottle back inside the unit's compartment, ensuring that the pipe portion of the atomizer is facing toward the back of the device.

•

  Step 8: Replace the top nozzle by screwing it firmly back onto the top of the unit.

•

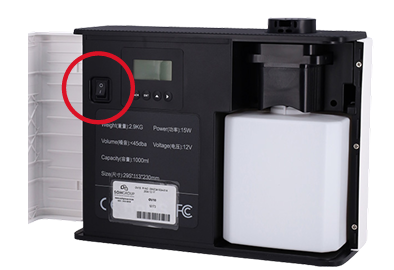

  Step 9: Turn the power switch back on to reactivate your unit.

•

  Step 10: Shut and secure the main compartment door.

Need Assistance?

If you run into issues during installation or refilling, contact the SOH Group Service Desk:
